- Size: 20-56
- Place of Origin: China
- Brand Name: ShanDong ShengRun
- Model Number: SKW9400GDY
- Weight: 17600.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

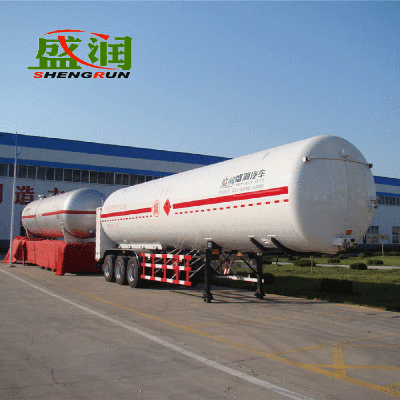

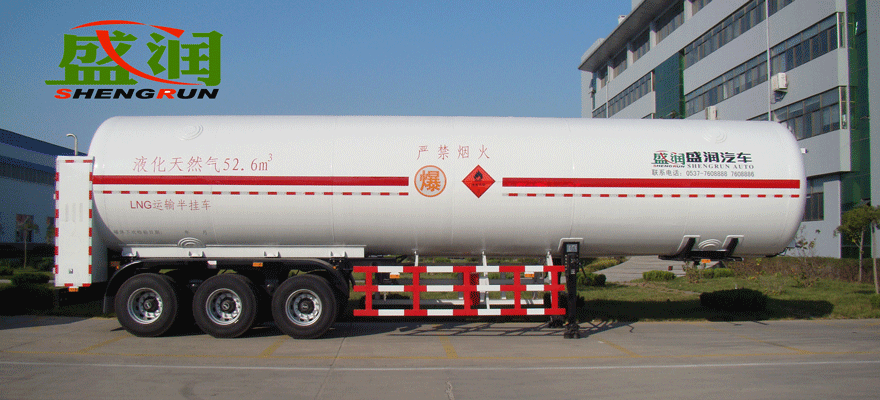

LNG Tube Trailer
Packaging & Delivery
Packaging Details: naked.
Delivery Detail: within 15 workdays after 30% contract value payment.
What is the features of our LNG Tube Trailer ?
Product purposes : applicable for railway transport of LNG.
Product characteristics : standardized,modularized and serialized.
With outer reinforcement and high strength steel shell with of independent patent technology, the product is of large volume and light weight, interlayer space can be reduced and tank volume can be increased.
Support of inner tank and outer tank shall be non-metallic insulation materials; with the unique line design,static evaporation rate is higher than the industry standard.
Our Services:
The quality warranty period of our products is within 12 months after delivery of products.
1.For normal damaged parts claims, service team will reply the distributor with in 3 working days.
2. For serious vehicle problems, it will take us 5 working days to reply the distributor, since our service team. has to report it to our factory for final judge.
Shengrun-trailer,your best choice!
Our advantages:
1.we can do the designing according to the customers' requirement;
2.we can offer you the best quality & reasonable price;
3.we can offer your a perfect after-sale service;
4.we are having strong professional design team;
5. Fast delivery. small order is welcomed.
Contact Information:
Order now,presenting $500 quick-wear parts Freely for you !
We are the manufacturer, so we can also make special design for you.
If you want to know more about the product, call me ! Let's talk more !
Get in touch:
Elena Lu
Shandong Shengrun Automobile Co., Ltd
No.1 Tongya Road ,Quanpu Industrial Park,Liangshan County,
Shandong. China
WhatsApp & Mobile : 86 15615778793
- Size: 20-56
- Place of Origin: China
- Brand Name: ShanDong ShengRun
- Model Number: SKW9400GDY
- Weight: 17600.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Specifications | |
Product model | SKW9400GDY |
Dimension | 13000*2500*3860 |
Rated Load | 19833/16500KG |
Tare Weight | 20167/23500KG |
Total Weight | 40000KG |
Tyre | 12R22.512PR 11.00R20 12PR |
Wheelbase | 6990 1320 1320
|
Rear overhang | -/1516
|
Approach/Departure angles | -/21° |
Maximum stable side-inclination | ≥23° |
Steel spring plate | -/10/10/10, -/7/7/7 |
Design,manufacturing and inspection standard | ||||
1,Pressure vessel GB150.1~150.4-2011 2,Fixed pressure vessel safety technology and supe- rvision code TSG R0004-2009 3,Pressure vessel welding procedures of NB/T4731 -2005 4,Coating,pressure vessel and transport packaging JB/T4731-2005 5,Steel horizontal vessel JB/TT4731-2005 6,Cryogenic pressure equipments in low alloy steel forgings NB/T47009-2010
| ||||
□explosive □extreme □highly □Moderate □mild | ||||
□7 □7 □8 □8 □9 | ||||
0.10g 0.15g 0.20g 0.30g 0.40g | ||||
Hydraulic test pressure Mpa | 2.32 | |||
Air tightness test pressure Mpa | 1.77 | |||
A.B Type weld Ed joint | Detective method and technical level | □Ray □AB □B | ||
□Ultrasonic □B □C | ||||
Detective ratio | 100% | |||
Qualified level | Class II | |||
C.D Type weld Ed joint | Detection method | □Magnetic powder or penetration | ||
Detective ratio | 100% | |||
Qualified level | Class I | |||
E Type weld Ed joint | Detection method | □Magnetic powder or penetration | ||
Detective ratio | 100% | |||
Qualified level | Class I | |||
Heat treatment requirements | Overall heat treatment furnace | |||
Design parameters | ||
Category (Class) | Class III(A2) | |
Design pressure Mpa | 1.77 | |
Maximum allowable working pressure Mpa | 1.85 | |
Work pressure Mpa | 1.6 | |
Design temperature ℃ | 50/-40 | |
Working temperature (maximum/minimum) ℃ | 40/-38 | |
Material name | ||
Material density kg/m3 | propane | |
Corrosion allowance mm | 1 | |
Joint efficiency | 1 | |
Basic wind pressure value Pa | ||
Main pressure parts material | 16MnDR | |
All capacity m3 | 50 | |
Filling coefficient | ||
Safety value set pressure Mpa | 1.8 | |
Insulation materials | ||
Insulation layer thickness mm | ||
Equipment net weight kg | ~12485 | |
Coating requirements | Surface rust rem- oval and painted | |
